Installing the Databricks App

LangGuard is delivered as a single, self-contained deployment artifact (langguard-<version>-<hash>.zip) plus a license key. The deploy script handles everything — Unity Catalog setup, Lakebase provisioning, secrets, and the app deployment itself.

Prerequisites

Install and authenticate these tools on the machine you deploy from:

Tool	Purpose
Databricks CLI	Deploys the app bundle and configures the workspace. Must be authenticated (databricks configure).
Python 3.8+	Runs the OpenCITE sidecar and the installer.
Node.js 18+ with npx	Runs the first-time workspace installer.

Workspace permissions

The identity you deploy with needs:

• Workspace admin or metastore admin (for Unity Catalog setup)
• CREATE CATALOG / CREATE SCHEMA (or a pre-created catalog)
• SQL warehouse access (Serverless or Pro)
• Databricks Apps — permission to create and manage apps
• Secrets — permission to create scopes and write secrets

External storage for OTLP ingestion

Databricks' native OTLP ingestion (Zerobus) requires the trace tables to live in a Unity Catalog schema backed by customer-managed external storage (S3, ADLS, or GCS). Metastore-managed storage is rejected by the OTLP endpoint. The installer detects your external locations and lets you pick one; if none exist, create an external location first.

Optional — AI Gateway cost tracking

For cross-endpoint token and cost aggregates, grant the app's service principal SELECT on system.ai_gateway.usage (plus USE CATALOG / USE SCHEMA on the system catalog). The system catalog is owned at the account tier, so this requires an account or metastore admin, and the system.ai_gateway schema must be enabled on the metastore. If you skip it, deployment still succeeds — you lose only the system.ai_gateway.usage aggregate. Per-request inference-table traces and LangGuard-proxy (/v1/chat) capture are unaffected.

Deploy

Unzip the artifact and run the deploy script with the license key you were given and your Databricks CLI profile:

unzip langguard-<version>-<hash>.zip -d langguard
cd langguard
bash deploy.sh <LICENSE_KEY> -p <PROFILE>

• <LICENSE_KEY> — the key shown when your build was created. The artifact only accepts the key it was built for; the wrong key is rejected immediately.
• -p <PROFILE> — a Databricks CLI profile from ~/.databrickscfg. The script resolves the workspace host from the profile (or from DATABRICKS_HOST).

The script runs a set of pre-flight checks, prints a deployment summary, and asks you to confirm before making any changes.

What the deploy does

On a fresh workspace the script runs the interactive installer first:

1. Unity Catalog — creates the catalog and two schemas:
   • langguard — views, annotations, discovery status
   • langguard_otel — OTEL span/log ingestion tables
2. Delta tables — langguard_otel_spans, langguard_otel_logs, trace_annotations, discovery_status
3. Lakebase — provisions the Lakebase PostgreSQL database and applies migrations (you provide the connection string when prompted)
4. Secrets — creates the langguard-secrets scope and stores connection strings and security keys
5. Deploy — deploys the app via Databricks Asset Bundle (databricks bundle deploy)
6. Permissions — grants the app's service principal the Unity Catalog and Lakebase permissions it needs
7. Start — starts the LangGuard app

On a subsequent deploy (the langguard-secrets scope already exists) the installer is skipped: the script redeploys the bundle, refreshes the Unity Catalog views (langguard_traces, langguard_observations, langguard_trace_stats), re-grants permissions, and restarts the app.

AWS S3 storage credentials (if needed)

On AWS workspaces that need S3 storage credentials for native OTEL ingestion, run:

npx tsx scripts/databricks-setup-storage.ts

Secrets

LangGuard reads its configuration from the langguard-secrets secret scope. The installer populates these for you:

Key	Description
license-key	Per-build license key (passed to deploy.sh)
databricks-catalog	Unity Catalog catalog name
sql-warehouse-path	SQL warehouse HTTP path
lakebase-connection-string	Lakebase PostgreSQL connection string
lakebase-endpoint-path	Lakebase endpoint (for OAuth credential generation)
session-secret	Web session secret
encryption-key	Data encryption key
proxy-shared-key	Shared bearer token between an AI Gateway endpoint and the LangGuard /v1/chat proxy (see AI Gateway)

After deployment

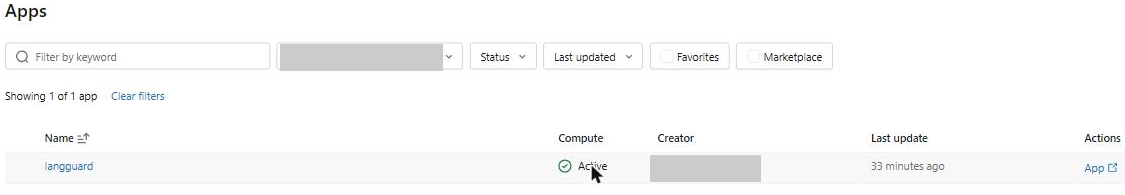

Open the app from the Databricks Apps page (or the URL printed at the end of the deploy). Authentication uses the Databricks Apps OIDC proxy — LangGuard maps your Databricks identity automatically, and CAN_MANAGE on the app grants the LangGuard admin role.

Next steps

• AI Gateway Enforcement — guard your model endpoints
• Data Capture — how activity is collected
• Unity Catalog Data — where your data lives
