Creating Policies

Learn how to write custom policies using Rego, the policy language used by Open Policy Agent (OPA).

Prerequisites

Before creating policies:

1. You understand basic Rego syntax
2. You have Member or Admin role in LangGuard

Policy Structure

Required Components

Every LangGuard policy needs:

package langguard.<policy_name>

import rego.v1

# Main violation rule
violation contains result if {
    # Evaluation logic

    result := {
        "type": "<violation_type>",
        "message": "Human-readable message",
        # Additional evidence fields as needed
    }
}

Full Example

package langguard.max_response_time

import rego.v1

# Detect slow responses using configurable threshold
violation contains result if {
    max_latency := object.get(input.config, "max_latency_ms", 5000)
    latency := object.get(input.trace.metadata, "latency_ms", 0)
    latency > max_latency

    result := {
        "type": "response_time_exceeded",
        "latency_ms": latency,
        "threshold_ms": max_latency,
        "message": sprintf("Response time exceeded threshold: %dms > %dms", [latency, max_latency]),
    }
}

Input Schema

Policies receive trace data and enrichment context as input:

{
  "trace": {
    "id": "tr_abc123",
    "name": "customer_query",
    "timestamp": "2024-03-15T10:30:00Z",
    "input": "...",
    "output": "...",
    "metadata": {
      "agent_name": "CustomerService",
      "latency_ms": 1234,
      "attributes": { "gen_ai.agent.name": "CustomerService" },
      "mappedGenAI": { "agentName": "CustomerService", "userId": "user-123" }
    },
    "tags": ["production"],
    "observations": [
      {
        "id": "obs_1",
        "type": "generation",
        "model": "gpt-4",
        "input": "...",
        "output": "...",
        "metadata": { "status": "success" },
        "usage": { "input": 850, "output": 400, "total": 1250 },
        "costDetails": { "total": 0.042 }
      }
    ]
  },
  "config": { },
  "entity_approval": {
    "entities": [ ],
    "unresolved_tools": [ ]
  },
  "catalog": { "tags": { "stage": "prod" } },
  "identity": { "user_id": "...", "classification": "human" }
}

Available Fields

Field	Type	Description
trace.id	string	Unique trace identifier
trace.name	string	Operation name
trace.timestamp	string	ISO timestamp
trace.input	string	Trace input content
trace.output	string	Trace output content
trace.metadata	object	Custom metadata (attributes, mappedGenAI, etc.)
trace.tags	array	Trace tags
trace.observations	array	Child observations (generations, spans, events)
config	object	Policy-specific configurable thresholds
entity_approval	object	Entity catalog approval data and unresolved tools
catalog	object	Catalog context (tags, stage, status)
identity	object	Identity enrichment data (user_id, classification, idp)
pii_detection	object	PII pre-processor results (when detect_pii tag is set)

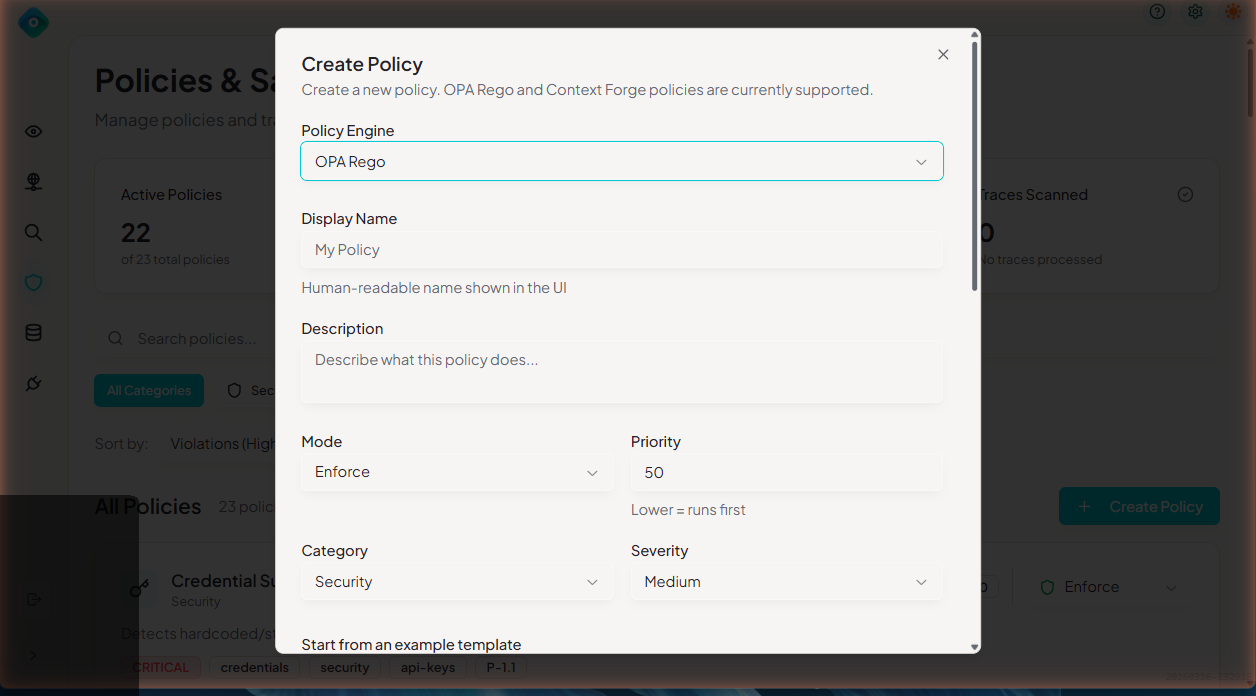

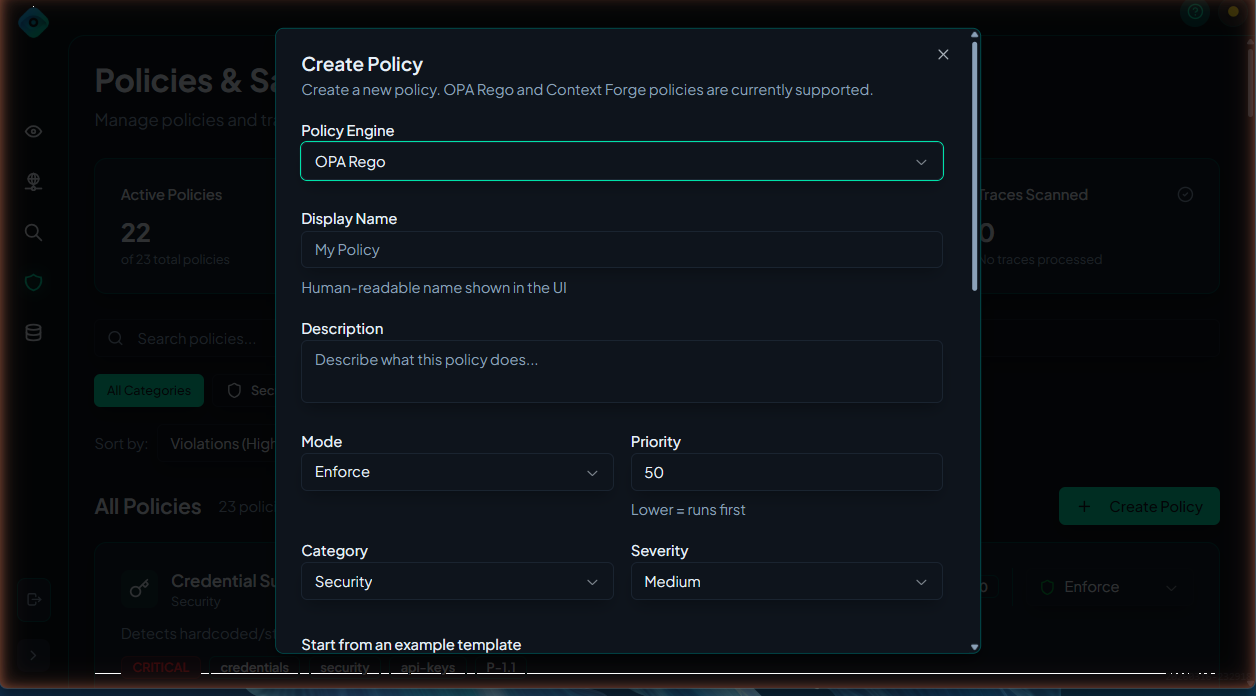

Creating a Policy

Via UI

1. Navigate to Policies
2. Click Create Policy
3. Fill in details:
   • Name: Unique identifier (lowercase, underscores)
   • Display Name: Human-readable name
   • Description: What the policy detects
   • Category: Security & Access, Models & Compliance, Budget & Operations, Audit
   • Severity: Critical, High, Medium, Low
4. Write Rego code in the editor
5. Click Test to validate
6. Click Create

For programmatic policy management, see the API documentation.

Common Patterns

Pattern 1: Regex Matching

Detect patterns in text:

package langguard.profanity_filter

import rego.v1

profanity_patterns := ["badword1", "badword2", "badword3"]

violation contains result if {
    trace := input.trace
    output := lower(trace.output)
    some pattern in profanity_patterns
    contains(output, pattern)

    result := {
        "type": "profanity_detected",
        "message": "Inappropriate content detected in output",
        "pattern": pattern,
    }
}

Pattern 2: Threshold Checking

Enforce numeric limits:

package langguard.max_tokens

import rego.v1

violation contains result if {
    max_tokens := object.get(input.config, "max_tokens_per_trace", 4000)
    total_tokens := sum([tokens |
        some obs in input.trace.observations
        obs.usage
        tokens := object.get(obs.usage, "total", 0)
    ])
    total_tokens > max_tokens

    result := {
        "type": "token_limit_exceeded",
        "total_tokens": total_tokens,
        "max_allowed": max_tokens,
        "message": sprintf("Token count %d exceeds limit of %d", [total_tokens, max_tokens]),
    }
}

Pattern 3: Allowlist/Blocklist

Control allowed values:

package langguard.approved_models

import rego.v1

approved_models := {"gpt-4", "gpt-4-turbo", "claude-3-opus"}

violation contains result if {
    some obs in input.trace.observations
    obs.model
    not approved_models[obs.model]

    result := {
        "type": "unapproved_model",
        "model": obs.model,
        "span_id": obs.id,
        "message": sprintf("Model '%s' is not approved for use", [obs.model]),
    }
}

Pattern 4: Observation Analysis

Check individual observations:

package langguard.slow_llm_calls

import rego.v1

violation contains result if {
    some obs in input.trace.observations
    obs.type == "generation"
    latency := object.get(obs.metadata, "latency_ms", 0)
    latency > 10000

    result := {
        "type": "slow_llm_call",
        "span_id": obs.id,
        "latency_ms": latency,
        "message": sprintf("LLM call '%s' took %dms", [obs.id, latency]),
    }
}

Pattern 5: Conditional Logic

Complex evaluation:

package langguard.production_guardrails

import rego.v1

violation contains result if {
    catalog := object.get(input, "catalog", {})
    tags := object.get(catalog, "tags", {})
    lower(object.get(tags, "stage", "")) == "prod"

    some obs in input.trace.observations
    obs.model == "gpt-4-turbo"
    total := object.get(obs.usage, "total", 0)
    total > 8000

    result := {
        "type": "expensive_production_usage",
        "model": obs.model,
        "tokens": total,
        "message": "High token usage with expensive model in production",
    }
}

Testing Policies

Test in UI

1. Open the policy editor
2. Click Test
3. Enter sample trace JSON
4. View evaluation results

Test with OPA CLI

# Save policy to file
cat > policy.rego << 'EOF'
package langguard.test_policy
import rego.v1
violation contains result if { ... }
EOF

# Test with input
echo '{"trace": {"id": "test", "metadata": {}, "observations": []}, "config": {}}' \
  | opa eval -d policy.rego 'data.langguard.test_policy.violation'

Unit Testing

Write OPA tests:

package langguard.test_policy_test

import rego.v1

test_violation_triggered if {
    result := data.langguard.test_policy.violation with input as {
        "trace": {"metadata": {}, "observations": [{"usage": {"total": 5000}}]},
        "config": {"max_tokens_per_trace": 4000},
    }
    count(result) > 0
}

test_no_violation if {
    result := data.langguard.test_policy.violation with input as {
        "trace": {"metadata": {}, "observations": [{"usage": {"total": 100}}]},
        "config": {"max_tokens_per_trace": 4000},
    }
    count(result) == 0
}

Run tests:

opa test . -v

Best Practices

1. Use Meaningful Names

# Good
package langguard.pii_email_detection
import rego.v1

# Bad
package langguard.policy1

2. Include Evidence

Always include what triggered the violation:

result := {
    ...
    "evidence": {
        "found_value": actual_value,
        "expected": threshold,
        "location": "output.text"
    }
}

3. Set Appropriate Severity

Severity	Use When
Critical	Security breach, data loss risk
High	Policy violation requiring action
Medium	Should be reviewed
Low	Informational

4. Handle Missing Data

violation contains result if {
    # Use object.get with defaults to safely access nested fields
    cost := object.get(input.trace.metadata, "cost", 0)
    cost > 0.10
    ...
}

5. Document Your Policies

Add comments explaining the logic:

package langguard.gdpr_compliance

import rego.v1

# GDPR Compliance Policy
#
# Detects potential GDPR violations including:
# - Processing EU citizen data without consent flag
# - Missing data retention metadata
# - Cross-border data transfer indicators
#
# Requires traces to include:
# - metadata.user_region
# - metadata.consent_given
# - metadata.data_retention_days

violation contains result if {
    # ... implementation
}

Debugging

Policy Not Triggering

1. Check policy is enabled
2. Verify Rego syntax is correct
3. Test with known-matching input
4. Check OPA server logs

Unexpected Violations

1. Review the evidence in violation details
2. Check for overly broad regex patterns
3. Verify threshold values
4. Test edge cases

---

Next Steps

• Policy Violations - Managing violations
• Troubleshooting - Common issues
